SUNFUTURE 1000W Solar Panel Energy Off Grid Power System

$5,240.08 USD

~~$0.00 USD~~ $5,240.08 USD

Sale Sold out

Shipping calculated at checkout.

Solar Power (W) 1KW

System Type Off-Grid Solar System

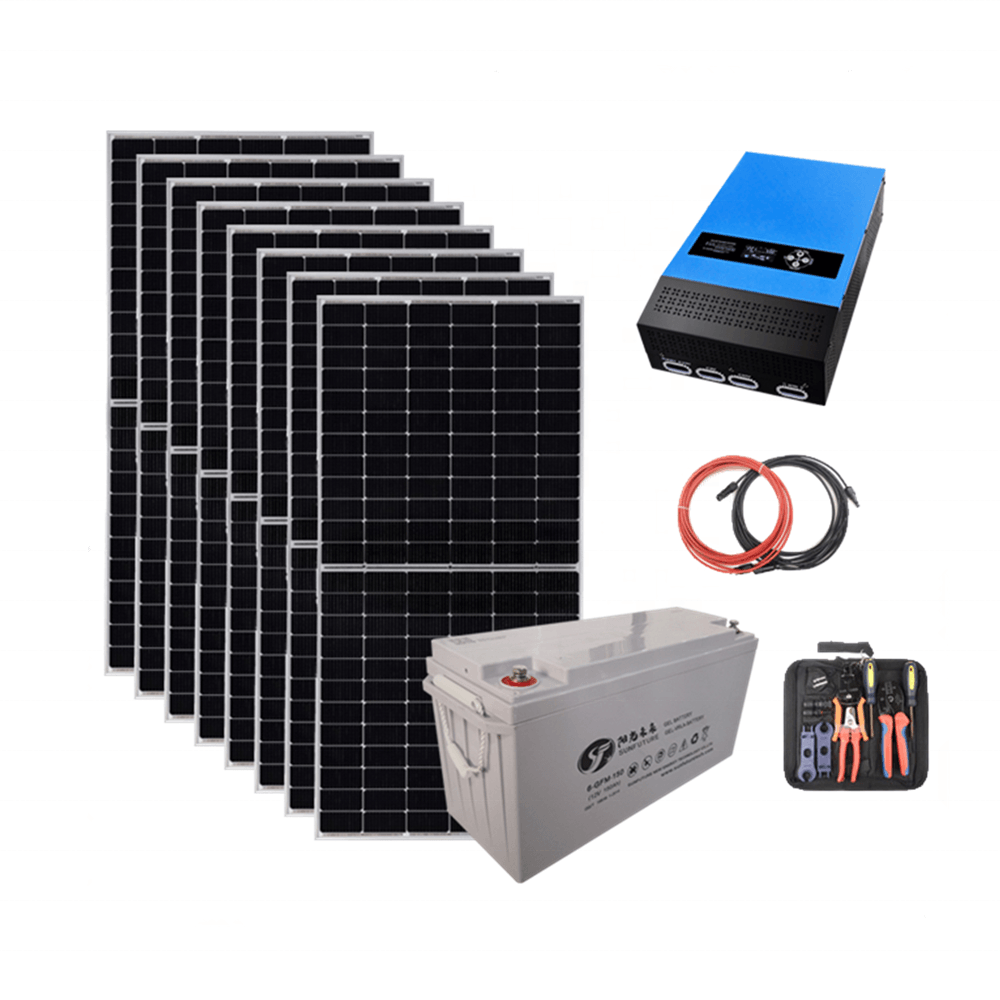

SUNFUTURE 1000W solar panel energy off grid solar power system

Positive feedback from EU client - Sunfuture 5KW hybrid solar power system

positive feedback

1KW solar energy storage systems configuration

SUNFUTURE offers 1KW-100KW off grid solar power system solution for home use & commercial

PURE SINE WAVE OFF GRID INVERTER

Model LW-		10212/24	20212/24/48		30224/48	40224/48	50248	60248
Rated power		1000w	2000w		3000w	4000w	5000w	6000w
Battery	Rated voltage	12/24V	12/24/48V		24/48V	24/48V	48V	48V
	Charge current	30A(Default)-C0~C6
Input	voltage range	85-138VAC / 93-150VAC / 170-275VAC / 186-300VAC
	Frequency	45-65Hz
Output	Voltage range	Inverter Output:110VAC / 115VAC/120VAC / 220VAC / 230VAC / 240VAC±2% Mains Output:110VAC /115VAC/ 120VAC / 220VAC / 230VAC / 240VAC±10%
	Frequency	Inverter Output: 50/60HZ±1% ; Mains Output: Automatic track
	Efficiency	≥85% (80% Resistive load)
Output waveform		Pure sine wave
Conversion time		≤4ms(Typical load)
Mode		DC Mode / AC Mode / ECO Mode
Display		LCD
Communication		RS232/RS485(Optional)
Cooling method		Temperature control fan cooling
Protection		Overload / overcurrent / short circuit / over temperature
Temperature		-10℃-40℃
Noise		≤55dB
Machine size: L x W x H		550243175				570261199
Package Size: L x W x H		605305270				625320295
Net weight		11	19	20.5		22	24	26
Gross weight		12.5	20.5	22		24	26	28
LW-T series built-in PWM controller
Rated current		20A/30A/40A/50A/60A
Input voltage range		12V: 15-50VDC; 24V:30-50VDC; 48V:60-100VDC
Maximum input power		20A:(12V:280w; 24V:560w; ) 30A:(12V:420w; 24V:840w; 48V:1680W) 40A:(12V:560w; 24V:1120w; 48V:2240W) 50A:(12V:700w; 24V:1400w; 48V:2800W) 60A:( 24V:1680w; 48V:3360W)
